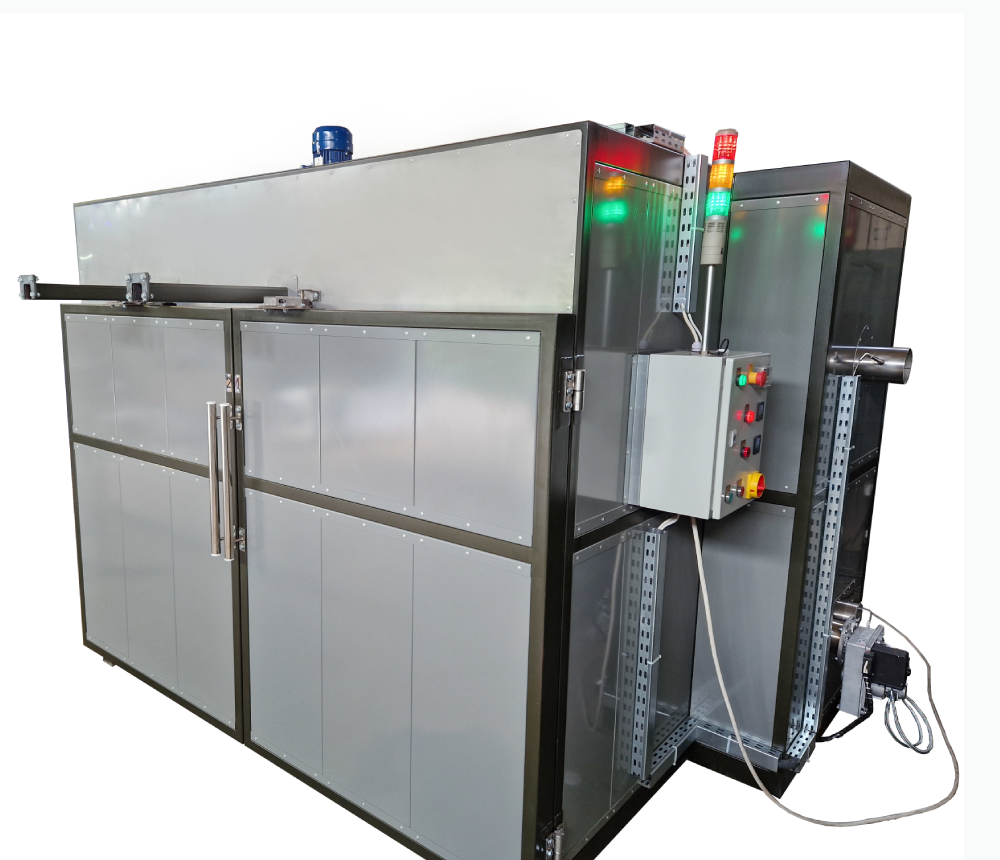

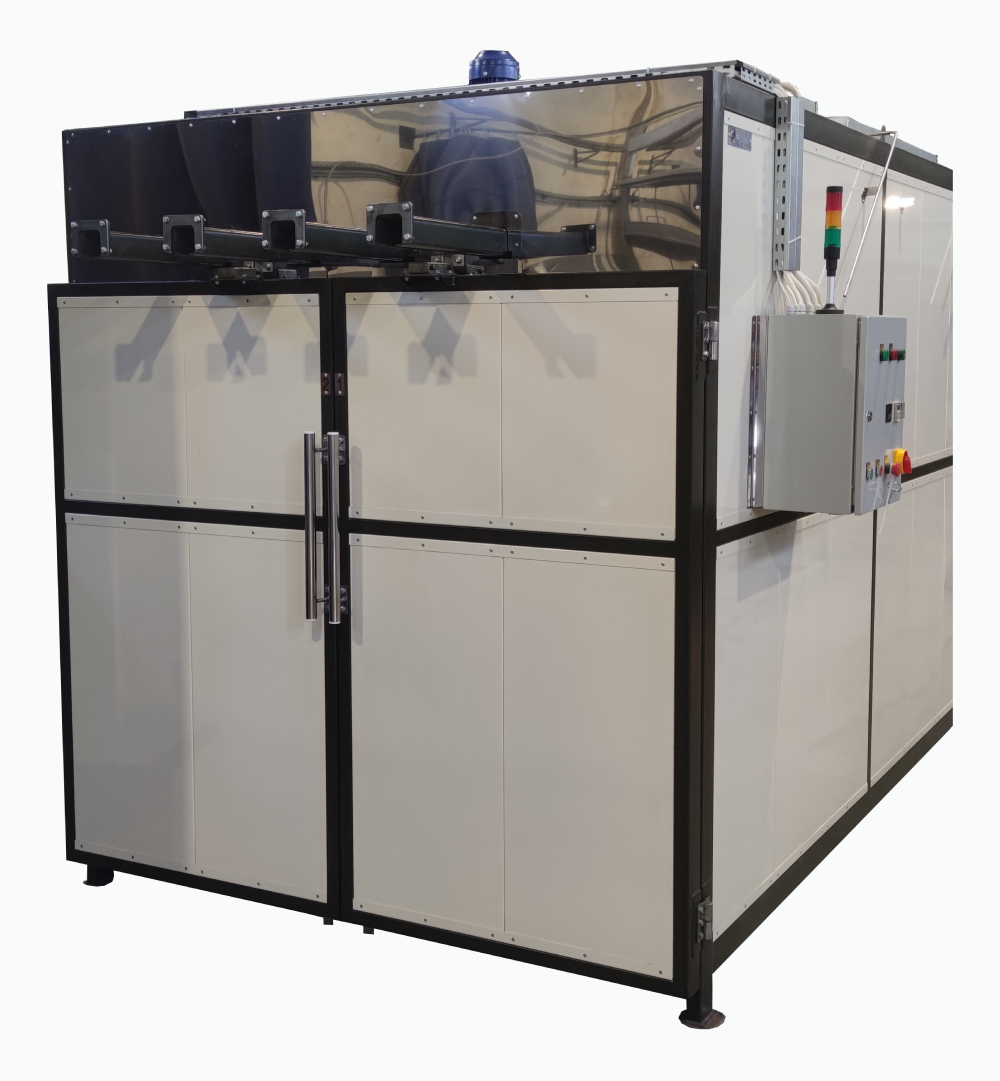

Vixen Powder Coating Curing Ovens
Our top-class curing / drying ovens are available in a variety of sizes to accommodate virtually all payloads and can be supplied with many different product loading options.
Temperature ranges available from 220°C up to 600°C
Fitted with coloured HMI screen and a PLC they are able to achieve high levels of thermal process control, stability and temperature uniformity.
Vixen Electric powered curing/drying Ovens are general purpose, electric, batch ovens with a standard temperature setting of 220°C, higher temperature ovens of up to 600°C available upon request.
They are ideally suited for a vast range of low temperature thermal processes such as drying, curing of resins, paints, composites. and other low temperature thermal processes.
Constructed from a heavy-duty steel box sectioned frame with infilled 160 and 300 mm thick insulated galvanised panels and externally clad in a hard-wearing powder coated finish.
Typical Applications
- Powder Coating Curing Processes
- Water based paint stoving
- Curing resins, rubbers and composites materials
- Pre-heating and low temperature heat treatments
- Processing plastics
- Thermal bonding
- Drying applications
- Thermal testing etc.
Benefits and Features
- Oven door framework made from corrosion and temperature resistant high quality stainless steel
- Forced air circulation with roof mounted fan/s
- Multi-positional hot air return vents for uniform heat distribution
- Temperature calibration achieved by adjustable holes in side walls
- Forced air ventilation (ventilation fan blows cool air into the oven to extract and cool via vents)
- Double loading doors with adjustable, explosion proof, slam shut positive, door locks
- Design tested to achieve ± 5°C over a 9-point survey
- Controlled and automatic exhaust damper for programmed fume ventilation as you need for your process
- Insulated floor with roll in/roll-out trolley and hanging frame. (optional)
- Roof mounted hanging rails (optional)
- Re-enforced flat, load bearing oven floor (optional)
- Galvanised coated internal work chamber sheets
- Modular electric heating system – ovens can be supplied with increased max temperature settings ( 250 – 300 – 350 – 400 -450 – 500 – 600°C
- Silicone door seals
- 240mm + thick insulation
- CE Marked
- 1 year manufacturer warranty
.png)
-1.png)

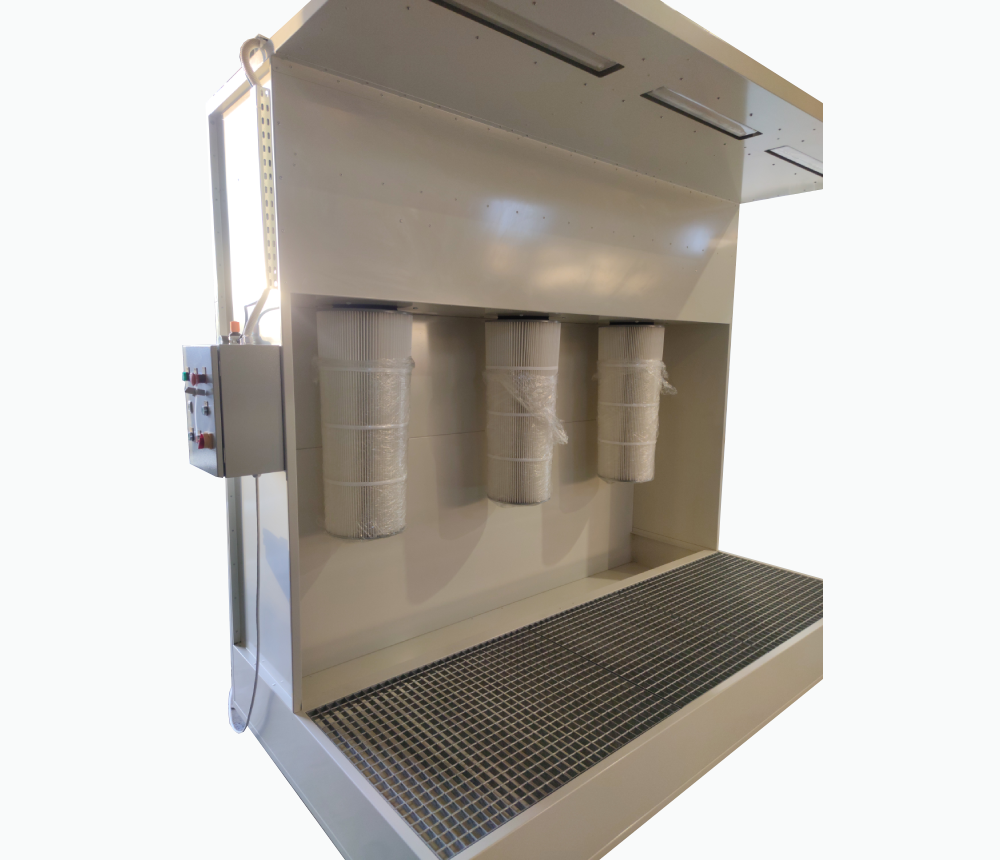

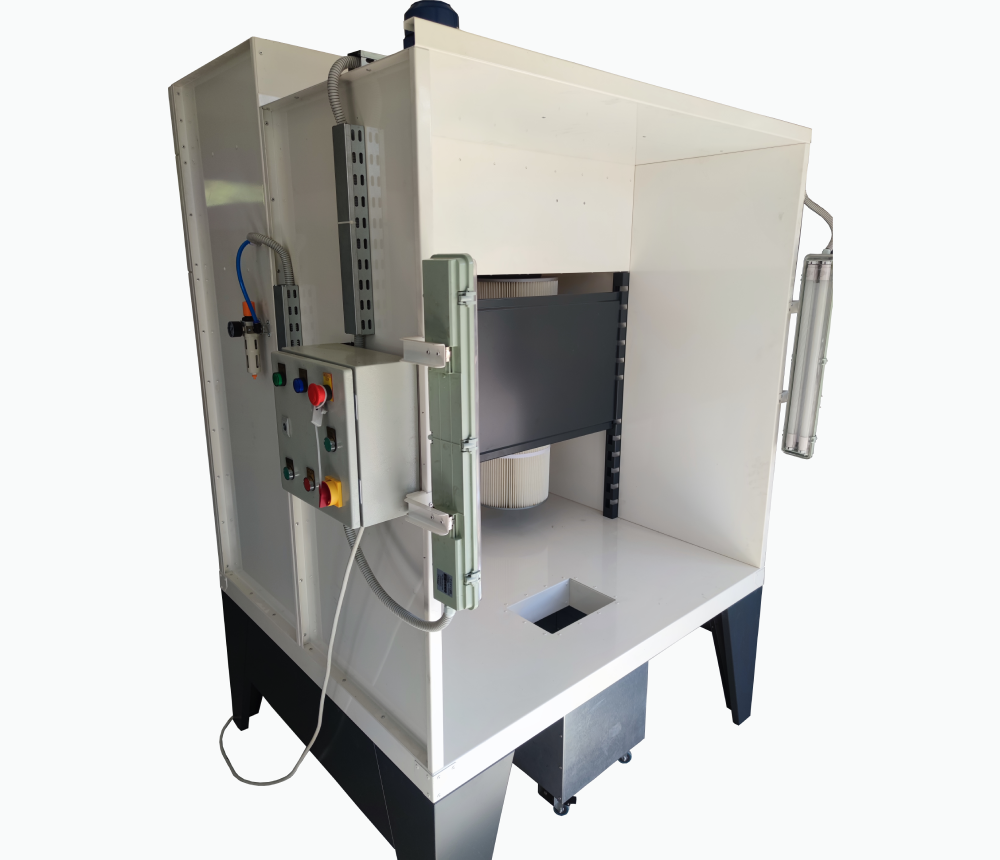

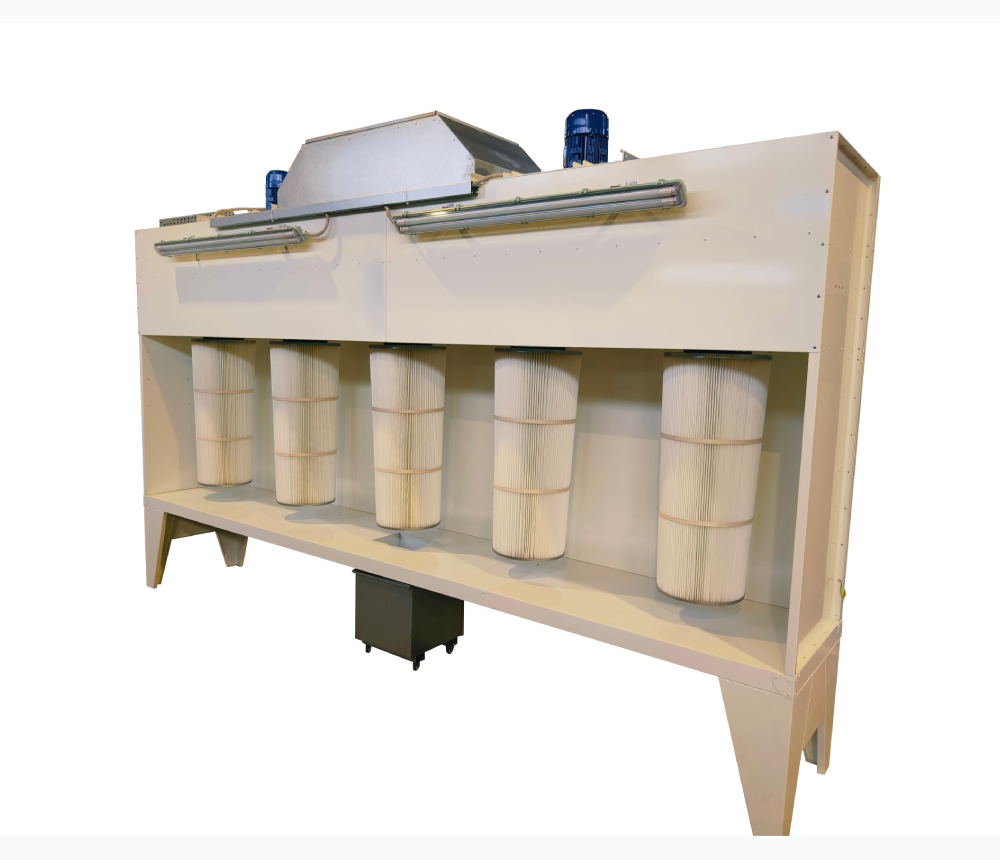

Standard and Lowered Designs
Our top-quality powder coating booths are available in a variety of sizes to suit the application in hand and are all fitted with high quality, integral filter cartridge, self-cleaning paint dust extraction.
Supplied with a coloured HMI screen and PLC control they are very efficient, simple to use and offer various program options and diagnostics.
The Vixen range of spray booths allow for painting multiple components by hand directly placed on the worktable or suspended from optional roof mounted hanging rails.
Typical Applications
- Provide a safe and controlled environment for electrostatic powder coating guns
- Reduce powder paint waste
- Lowers production costs while maintaining high quality results
Benefits and Features
- Carefully designed to prevent explosive mixes
- HMI touchscreen & PLC
- Aluminium fans - safer to use and quieter than standard steel fans
- Sealed filter installation
- Automatic cartridge filter cleansing
- Reverse pulse cleaning
.png)
.png)
.png)
Romer Powder Coating Gun
The ProfiSpray V is built of the highest quality materials and incorporates the most advanced technological features of all the powder coating corona guns developed by Romer.
Romer Spray units are characterised by their ability to provide high productivity and efficiency rates in the application of sprayed powders. They offer a simple operation to deliver excellent coverage even in the most difficult to reach places with plastic or metallic powders.
Adjustment features of the powder gun allow for overlapping elements with a homogeneous powder stream, whilst also allowing you to control the thickness of the coating, giving optimum coverage.

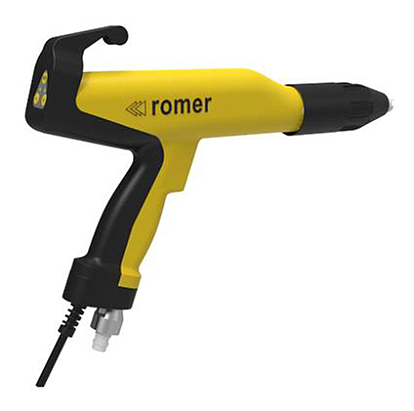

ProfiSpray V Powder Coating Gun
A patented design in the US & EU the ProfiGun is a great option for heavy & light users.
- Electronic control improves penetration, reduces orange peel and back-ionization even with the most difficult of powders
- Accurate powder delivery with a digital valve control
- Up to 100kV powder charging capacity for better paint delivery onto components
- Light and easy for long term use with an ergonomic shape and balance
- One finger trigger operation
- Adjust paint flow and program from the gun
- Robust impact resistant materials
- Excellent operator grounding with the high-carbon conductive handle and powder hose
- Integrated air purge
- Easy to maintain and disassemble with replaceable powder path
- On-gun cleaning function selection
Powder Coating Injector
The Profijector powder pump is an efficient injector covered by European patents. It includes a the most efficient feed angle to save both paint and water giving lower running costs. Quick coupling makes maintenance easy.
.png)

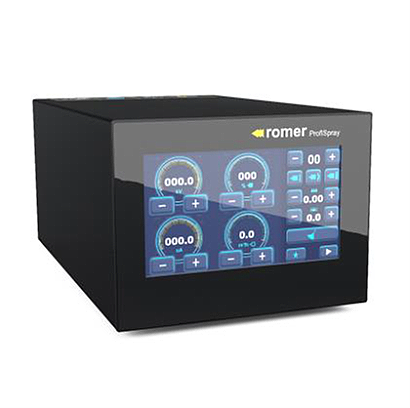

Touch Panel and Controls
- Easy to Use 7-inch touch panel
- Panel can be used with gloves
- Auto and manual spray settings
- Flexible and ad-hoc adjustment of voltage, current, powder and air
- 0.1kV and 0.1uA graduations in full adjustment range for great coverage of many paints and components
+ Many more

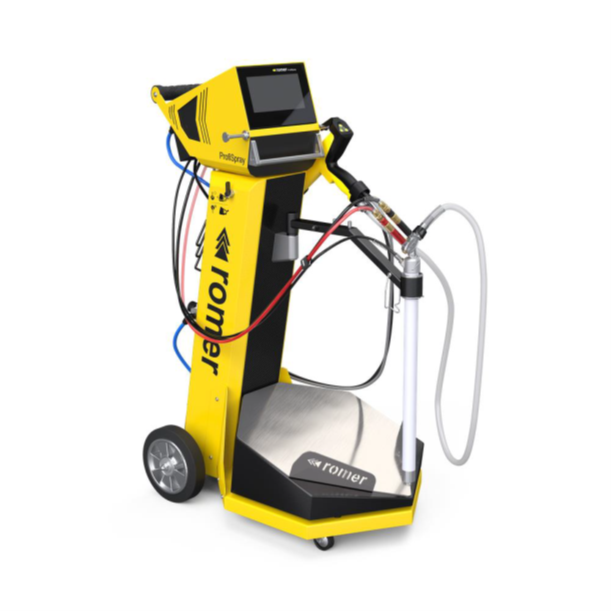

Stand Features
Pulling together the great control features and gun is an easy to move stand. This robust manoeuvrable trolley with vibrating powder box platform includes handy features for storing the Profispray gun, hoses and cables. This includes an air preparation unit.
The inclined vibrating table allows all the powder to be used and the fluidised suction tube is optimized for constant powder delivery.
.png)
